Shrapnel Guards

Shrapnel guards

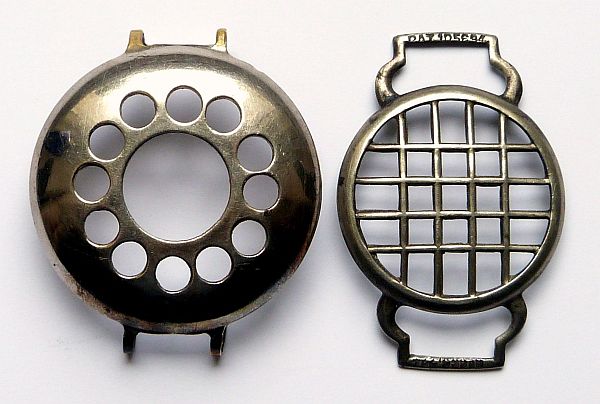

Shrapnel Guards 644549 and 656724 / 105694

An alternative to the unbreakable or UB crystal, for a watch with a glass crystal that had been purchased before the war or before UB crystals became available in 1916, was a metal grill or mesh that covered the crystal but still allowed the time to be read. These slipped onto the wrist strap, and had criss cross bars or metal domes pierced with round or shaped holes that allowed the wearer to read the time through the holes.

These are often today called "shrapnel guards" but would not really have been much use if the watch and its wearer were actually hit by shrapnel, a hail of bullets discharged close to a target by the timed explosion of a shell fired from a field gun. However, they would certainly protect the vulnerable crystal against the everyday bumps and knocks that it might experience in the cramped conditions of the trenches and when going "over the top".

I don't think they were called shrapnel guards during the Great War; "mesh guard" or "watch protector" appear to have been the terms in use then. But you have to admit that Shrapnel Guard sounds good.

The photograph here shows two of these shrapnel guards. The one to the left, a "telephone dial" style, has a Registered Design number stamped inside the dome, RD 644549 and the legend "IN·12". The one to the right in a style called a "mesh guard" has a Registered Design number RD 656724 stamped on one of the strap loops and PAT (for patent) 105694 on the other.

The one on the left, the telephone dial style, is the earlier of the two. The Registered Design number 644549 was registered on 12 December 1914 by Alfred Davison of St. John Street, London, a jeweller and metal worker. The guard on the right was made by Hirst Bros. and is discussed further below.

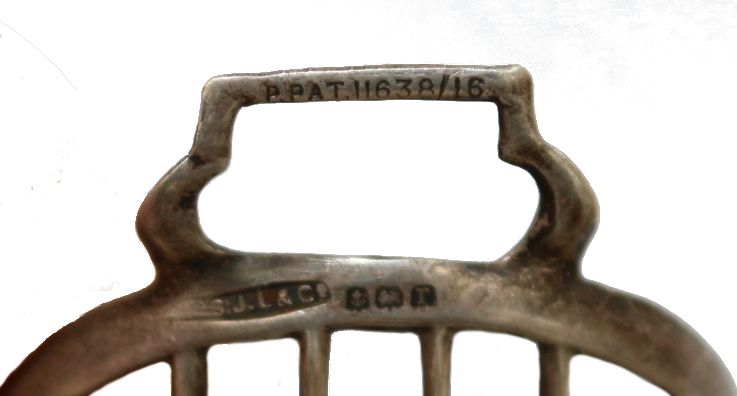

Levi silver guard
Levi sterling silver guard
Thanks to Andy Strange for the photograph

Shrapnel guards like the ones in the photograph were usually made by stamping them out from sheet metal, and once the punches and dies had been made the guards could easily be produced in large numbers. In an article in the Horological Journal in 1998 Dennis Harris says that judging by the number for sale at collector's fairs at the time they must have been produced by the thousands, which they would have been; making the stamps and dies was expensive, and this cost would be spread across as many items as possible. However, this doesn't of course mean that they were all used at the front, and with the introduction of unbreakable crystals the market for these guards must have been severely curtailed. It seems likely that the large numbers that Harris saw for sale might have been unsold stock, certainly the ones that I have seen show little signs of use.

The vast majority of shrapnel guards that I have seen have been either nickel or silver plated. Silver plate tests as silver with simple testing kits, which only test the surface of the metal so be carefil if someone tries to sell you one as being silver. Solid silver should be hallmarked. I have only seen one guard made in sterling silver and hallmarked, the one seen in the photograph here by Andy Strange. This carries the sponsor's mark "S.J.L&Co." entered by Samuel Joseph Levi of Birmingham, a silversmith and electroplate manufacturer, and Birmingham Assay Office hallmarks for 1916/1917. It also carries the legend "P.PAT. 11638/16, which is a reference to a patent application submitted by Levi in 1916. This is discussed in more detail further down the page.

Origins

It is probably impossible to know who exactly was the first person to come up with the idea of a protector for wristwatch crystals because, like the wristwatch itself, the idea is fairly obvious. However, unlike the wristwatch which was never patented, this didn't stop various patents being granted for devices intended to protect the crystals or glasses of wristwatches. But to become widely used they needed a market and a demand, which for wristwatches, and even more so for wristwatch protectors, didn't really exist before the Great War.

The earliest patent for a protector specifically for wristwatches that I have seen was granted to Sydney Smith in June 1913, No. 22,414 with a priority date of 2 October 1912, "A protector for wrist watch glasses". This was different to the later shrapnel guards in that it was a metal ring that clipped directly onto the watch case, not with loops for the wrist strap. The ring surrounded the crystal and covered its edges but left the centre part clear, although the patent says that the central hole could be filled with transparent celluloid, or made smaller and surrounded with numerals, turning the watch into a half hunter.

645715shrapnelguard
645715 faux tortoiseshell guard
Thanks to Phil for the photograph

A patent for "An Improved Watch Face Protector" was granted to Gilbert Dennison, of the Birmingham watch case makers, in 1915, No. 23,796 with a priority date of 9 December 1914. It used a number of metal strips that were pivoted on a fixed ring at one end and a moving ring at the other. When the movable ring was rotated the strips slid to cover or reveal the dial, in much the same way that the aperture of a camera lens operates. It was a clever idea, but needed both hands to operate it. This design was also patented in the USA. It would have been expensive and also quite fragile, and I have never seen one.

The rather attractive faux tortoiseshell guard in the photograph has the Registered Design number 645715, which was registered on 3 February 1915 by Robert Blacklock of Sunderland, County Durham, a jeweller. It is made from celluloid, which was the only transparent artificial plastic material available at the time and was used as a substitute for expensive natural materials like amber and tortoiseshell. This is an unusual guard, the only one I have seen that is not made of metal.

In 1916 Harry Daw was granted a patent for "An Improved Protector for Wrist Watches", No. 11,577 with priority date 11 August 1915. This was perhaps the first protector that looked like a typical shrapnel guard. It comprised a domed metal disk with loops through which the wrist strap passed. The top of the disk had a series of slits forming bars which were turned at an angle so that the dial could be seen through the perforations between the bars when the watch is tilted at an angle, rather like looking through a Venetian blind.

Hirst Bros. and Samuel Levi

It appears that one of the the earliest of these guards to be actually put on the market and sold in significant numbers was introduced by Hirst Brothers. & Co. Ltd. of Oldham, Lancashire, described in the Horological Journal in June 1916. The HJ article begins with the statement "A new idea in wrist watch protection patents has just been placed on the market. It is registered by Messrs. Hirst Bros. & Co. Ltd., of Oldham (No. 652595) under the name of "Mesh-Guard" ..." This is the earliest reference I have yet found to the marketing, and hence widespread sale and use, of wristwatch guards or protectors.

Guards carrying the legend RD 652595, the Hirst design discussed in the HJ article, are very similar to the guard shown on the right in the first photograph above; the front grill looks the same but the loops for the strap to pass through are plainer, having straight sides rather than the curved "lyre shaped" sides of the guard in the picture.

GBpatent10569417081916
GB patent 105694, licensed by Levi to Hirst

Although Hirst Brothers and Co. Ltd. had taken the precaution of registering their design, it seems that they had not protected the idea by securing a patent. A patent for "Improvements relating to Protectors or Guards for Wristlet Watches" was granted to Samuel Joseph Levi of Birmingham, a silversmith and electroplate manufacturer, in 1917, with a priority date of 17 August 1916. The priority date is when the application was received at the patent office, so Levi submitted his application for the patent several months after the announcement of the Hirst design in the Horological Journal.

A figure from the Levi patent is shown here and you can see that the design looks the same as the guard on the right in the first photograph above, lyre shaped loops and all. The patent number is 106594, the same as the PAT number stamped on one of the loops of the guard in the photograph, confirming that it is the same design. This design was also registered with the Board of Trade as Registered Design number RD 656724. Whether it was Levi or Hirst that registered it is not known.

The Registered Design number 656724 was used in advertising by Hirst Bros. so at least some of the guards carrying that number were made by them. The number is different from, and later than, the number 652595 quoted in the Horological Journal.

Was there a connection between Hirst Brothers and Co. Ltd. and Levi? The list of exhibitors at the 1922 British Industries Fair included "Hirst Brothers and Co., Oldham, London, Birmingham and Manchester" so Hirst Bros. did have a Birmingham operation, but the same list includes "S. J. Levi and Co. of Squirrel Works, Regent Place, Birmingham", manufacturers of "Leviathan" Electro-plate. showing that Levi was a separate manufacturer.

It seems likely that after Levi lodged the patent it was recognised that the two designs were so similar that Hirst Bros. had no choice but to either contest the patent, an expensive and drawn out legal procedure that they might not have won, or buy the rights from Levi. A period advert which shows the design with the curved sided loops of the patent calls it ‘The improved "Mesh Guard" Reg. No. 656724 P.PAT 11638/16’, the "improved" no doubt signifying the use of the later design.

I have seen mesh guards impressed with "RD 656.724" on one lug and "P.PAT. 11638/16" on the other, the numbers referred to in the Hirst Brothers' advertisement. The number 656.724 refers to Registered Design number 656724, so the design is the same one, but the patent number is different. This is a reference to Levi's patent application. The "P.PAT" stated in the advertisement means "pending patent" or patent pending, which has no legal status but warns that a patent has been applied for and optimism on the part of the applicant that it will be granted.

The provisional specification for the Levi patent was lodged on 17 August 1916 and given the application number 11,638 — the "/16" refers to the year. Levi made some guards stamped with this number, the sterling silver guard shown in the picture above by Andy Strange is one of them, which is perhaps how Hirst Bros. got to know about Levi's design. The complete specification was lodged 25 September 1916 and the patent was granted on 26 April 1917, British patent number 105694.

Summary of Hirst Bros. and Levi numbers

RD 652595 — first Hirst Brothers design, June 1916 to circa August 1916.

RD 656724 and P.PAT. 11638/16 — Levi design during patent examination August 1916 to April 1917.

RD 656724 and PAT. 105694 — Levi design after patent granted 26/04/1917.

Guards with the "patent pending" number 11638/16 must have been made during the period the patent was being examined after 17 August 1916, and those with the patent number 105694 must have been manufactured after 17 August 1917. Which is interesting given the announcement in of this guard the Horological Journal of June 1916. This announcement in June 1916 was two months before the application for the patent was lodged by Levi.

From the date of the first article in the Horological Journal, the date that the patent application was lodged, and the date that the patent was granted, we can put some dates to guards stamped with the various Registered Design and patent numbers, which I have done in the side box. This also helps to understand the rather confusing jumble of numbers surrounding the Hirst Bros. and Levi guards.

Boneham and Hart v. Hirst Bros.

At about the same time as Hirst Brothers put their Mesh Guard onto the market, other firms were doing the same. A company called Boneham and Hart, trading as F. Boneham & Co., started to advertise their "Vizard" protectors, which differed from the Mesh-Guard only in the shape of the ears. Hirst Brothers issued an advertisement in which they warned that "The extraordinary success of the Mesh Guard, Regd. No. 656724 P. Pat 11,638/16, Patented in France, Switzerland and U.S.A. has evoked some rubbishy imitations ... and the adoption of similar sounding names", and threatened legal proceedings against manufacturers or dealers "infringing our patent or registered design".

The advertisement by Hirst Bros. in which they threatened legal proceedings against other manufacturers of similar guards caused Boneham and Hart, manufacturers of the "Vizard" protectors, to start a legal action for threats against Hirst Brothers, and a messy and lengthy court case ensued. There was also another guard on the market at the same time called the “Vanguard” that was not so near in appearance to the “Mesh Guard” as was the “Vizard”.

Farr's Design

GBpatent10381519160302
GB patent 103815, Frank Farr of Montreal

Another design of shrapnel guard that I have seen fairly often is the one shown in the figure from GB patent 103815 "Improvements in Watch Face Protectors" shown here. This guard was designed (I hesitate to say "invented") by Frank Farr of Montreal, Canada, and was first patented in the United States with a priority date of 3 February 1916.

Farr's patent might have clashed with the Levi patent and taken priority because in concept it is very similar. The application for a British patent was received in November 1916, still within the period when the Levi patent was under examination. However, the Farr patent was approved and given British patent number 103815. Although I have seen guards like this I have never noticed this or any other number on them.

I think the Farr guard is quite aesthetically attractive with its "non-radially disposed" bar pattern. Farr makes the point that these bars will not be confused with the hands of the watch, and offers two patterns with the bars straight or curved. Twelve bars are shown so that the hour numerals are will be visible between pairs of bars, but Farr does not restrict the number to twelve. The slot at 15 allows the guard to be put on to a watch with a sewn on strap, where the buckle would not be able to pass through the gap that the strap passes through.

Hunter Cased Wristwatches

It might be thought that wristwatches with hunter cases, that is with a lid that normally covers the crystal, would be favoured in the trenches because the lid would protect the crystal from knocks. However, although undoubtedly a few such watches did see service they are few and far between these days, very many fewer than either open faced wrist watches from the time that are still in existence. They were also not advertised during the Great War anything like as widely as open faced wristwatches.

It must be concluded that hunter cased watches were not popular in the trenches, and it is not hard to understand why this was. To open the lid of a hunter wristwatch to read the time you need to use your free hand to press the button on the case that releases the lid, or to lift the lid if it is not sprung loaded. This mean that both hands were needed in order to read the time, which defeated the purpose of wearing a wristwatch in the first place.

The "half" or "demi" hunter design, where a small crystal is let into the lid so that the time can be read with the lid closed, might be thought to be a suitable alternative to the full hunter. But this design suffers from two problems when it comes to wristwatches: first that it is more difficult to read the time through the small window in the lid, and secondly that it was difficult to produce a design of hands that could be luminised and yet remain easy to distinguish one from the other when looking through the small window. And as luminised hands soon came to be regarded as essential in a trench watch this was a serious flaw.

With the advent of unbreakable glass the need for hunter cases or shrapnel guards for wristwatches disappeared.

The "Army" Wristwatch Protector

TheArmyWWprotector
The "Army" Wristwatch Protector

The "Army wristwatch protector" was a sprung clamshell type of device that completely enclosed the watch and gave it, in effect, a hunter lid, as shown in the advert here.

An application for a patent for this invention for "Improvements in Detachable Protectors or Caps for the Glasses of Wristlet Watches" was lodged by Charles Adolf Schierwater, 29 Church St, Liverpool, jeweller, on 8 October 1914, and British patent number 20696 was granted on 10 June 1915. The design was also registered with the Board of Trade as Registered Design RD 647078. Patents for the same design were granted in Switzerland, France and Canada.

Schierwater & Lloyd at Waltham Buildings, 29 Church St, Liverpool, were at one time the largest British retail agents for Waltham watches.

This design of course meant that, as with a hunter wristwatch, both hands were needed in order to read the time, which rather defeated the purpose of wearing a wristwatch. It obviously didn't take long for this drawback to be realised because I have also seen the same item with a pierced lid so that the time can be read without opening it. The inside back carries the same Registered Design number RD 647078 and a British patent number 20698.
